Pulsed Doppler LiDAR systems for range resolved remote sensing of the atmosphere


The Halo Photonics pulsed Doppler LiDAR system is a unique, state-of-the-art autonomous instrument for atmospheric remote sensing. The systems are suited to boundary layer meteorology, cloud measurements, wind profiling and air quality monitoring - all in one unit. Please contact us if you need further details or have a requirement not listed.

- Site search

Features:
- Field deployable
- Turn key operation
- Eye safe (Class 1M)
- Modular construction
- Low power, air cooled
- No moving parts
- Data logged in ASCII
- Flexible software
- Remote monitoring/control

Typical applications:
- Cloud studies:
- - Doppler ceilometer
- - Cloud convection
- Wind profiling
[Example]
- Air quality monitoring
- Pollution dispersion
- Gust monitoring
- Wind shear monitoring
- Boundary layer meteorology

Useful for:
- Airports:
  - Wind profiles
  - Cloud base mapping
  - Visibility
  - Vortex detection and tracking

- University research
  - PBL mapping
  - Eddy dissipation rate
  - Cloud research
  - Water/ice discrimination

- Environmental monitoring:
  - City pollution mapping

  - Air quality assessment
  - Pollution dispersion
  -
Forest fire detection and tracking

- Wind farms:
  - Gust monitoring
  - Turbulence warning
  - Improve power output

- Meteorology:
  - Wind profiling
  - Visibility
  - Boundary layer mixing height
  - Scanned ceilometer




[Wind flow data - click for details]

More details

Specifications: [Go]
Data examples: [Go]

100mm LiDAR Scanner
[Click to see video 3MB]







Met Office Cardington
Aug - Oct 2007

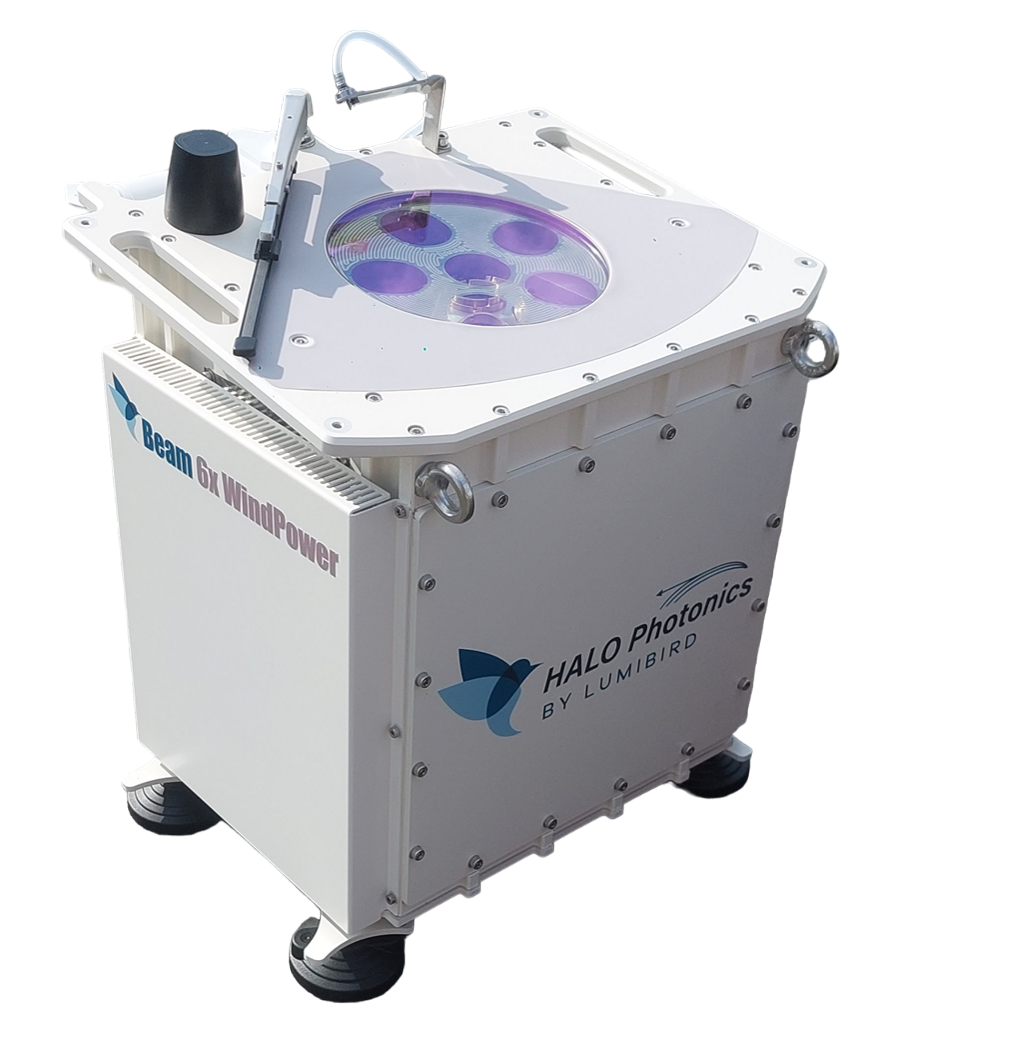

  The LiDAR base unit can be installed on a variety of platforms and can be housed in a weatherproof enclosure for field deployment.

LiDAR_Scanner.jpg (210318 bytes)NEW: A new hemisphere scanner, designed and manufactured by Halo Photonics, allows the LiDAR beam to be scanned in any pattern. The design incorporates a slip ring, allowing continual azimuth scanning without cable wrap up. A video camera is situated close to the LiDAR output aperture. The scanner is a stand alone product, which may be suitable for other equipment - please contact us if you have a requirement.





[
Data Examples]
[Spec sheet] [Contact]
